How to Replace a Single-Pole Light Switch

Nothing’s more frustrating than flicking a light switch and having the light not turn on. If you’ve ruled out a burnt-out bulb, the switch itself may be faulty.

Replacing a single-pole light switch is a straightforward DIY project that takes only a few tools and a little know-how. If you have enough experience with electrical work, you may be able to do the job in just 10 to 15 minutes. However, there are still a number of safety precautions you still need to follow.

If you’re uncomfortable working with electricity, contact a licensed electrician to do the job.

How Light Switches Work

Switches work by controlling the flow of electrical current in the hot wire. Power comes in through the wire attached to the bottom of the switch, then goes out to a light or device through the wire attached to the top.

Hot wires in a home are usually color-coded black or red, with neutral ones white and ground ones either bare or green. However, the switch’s hot wire may also be white under certain conditions. If that’s the case, it should be wrapped with black electrical tape to show that it functions as a hot wire.

When you flip the switch, power flows through the switch and hot wire to the light fixture. The neutral wire returns the electricity to the panel, and the ground wire provides a safe path for excess electrical current. Always be sure to connect the ground wire properly for safety.

Essential to starting any electrical project is ensuring you have the proper tools for the job. Here are the basic tools and materials you’ll need to replace a light switch successfully:

• Screwdrivers — You’ll need both flat and Phillips heads to remove the switch plate cover and disconnect the wires. Make sure the screwdrivers are insulated to avoid shocks.
• Non-contact Voltage Tester — A tester allows you to safely detect live wires even when the power is off at the breaker panel. Always double-check for power before working.
• Wire Strippers — Use a set of wire strippers with notches for different gauge wires. These are necessary for stripping the insulation off wires.
• Electrical Tape — Standard black electrical tape is for re-wrapping wires and re-insulating any exposed wires.
• Light Switch — Purchase a standard single-pole, single-throw replacement wall switch. There are different styles, but the key differences are quality and weather resistance. Dimmer switches are also available and can be popular for dining rooms and bedrooms. If you need help determining which replacement switch you need, take the old one to the store for an identical match.

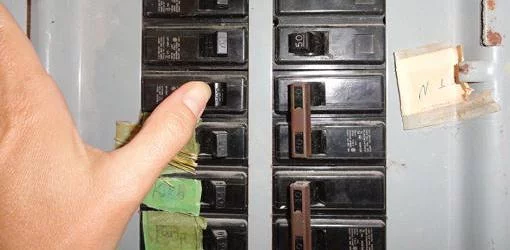

Step 1: Turn Off the Power at the Circuit Breaker

Before you work on the switch, make sure that the light is off at the switch and at the breaker. Residual power may remain in the wires even when the switch is off.

Start by opening the circuit breaker panel, typically located in your garage or basement, and turning off the breaker that powers the switch. If the breakers aren’t labeled, turn on the light and try each breaker until the light goes off. If you’re unsure or the switch wasn’t working, turn off the main house breaker to shut down the entire panel. Flip the switch a few times to make sure that the power is off.

Step 2: Remove the Switch Cover Plate

Taking off the cover plate will let you access the switch mounting screws and wires. Once the power is confirmed off, use a screwdriver to remove the screws holding the cover plate in place. If the plate is stuck to the wall with paint, run a utility knife between the cover plate and wall to cut through the seal. Store the screws and plate for use later.

Wear gloves when you use the utility knife, and be careful to only apply enough pressure to cut through the paint.

Step 3: Unscrew the Existing Switch

Once the cover plate is off, you’ll be able to see the switch mounting screws. Remove these screws, then gently pull the switch out from the electrical box to access the wires behind it.

During this step, move slowly and carefully so you don’t damage the wires. The switch will still be connected, so you’ll need to wiggle it to detach it. Don’t let wires drop back into the electrical box, as this can make reconnection more difficult.

Step 4: Disconnect and Label the Wires

To make sure the new switch gets wired correctly, it’s imperative to label each wire with its purpose. You don’t want to be confused later on.

Carefully disconnect each wire one at a time, and use tape to label them according to their location on the old switch. Take note of the position of each screw terminal as you go.

A few common labels include the following:

• LINE (incoming hot wire)
• LOAD (wire to light)
• NEUTRAL
• GROUND

Note that the incoming hot wire may still be attached to the darker copper screw on some older switches.

Step 5: Connect the Wires to the New Switch

Refer to your wire labels to connect each wire to the matching terminal on the new switch. Line up the colors exactly: black to black, white to white, and so on.

Strip about 1/2 inch of insulation from the end of each wire, and form a hook in the bare wire with needle-nose pliers. Place the hook around the appropriate screw terminal, and tighten firmly to secure the connection.

Ensure bare ground wires are folded into a circle and connected to the green grounding screw. The ground wire is an important safety component. After connecting the wires, gently tuck them into the electrical box, leaving room for the switch.

Step 6: Mount and Test the New Switch

With all wires securely connected, it’s time to mount the new switch and test it. Carefully tuck the wires into the electrical box, leaving enough room for the switch to fit snugly. Position the switch and secure it with the mounting screws.

Before you flip the breaker back on, carefully review your work and double-check all connections. If everything is correct, replace the cover plate and turn the power back on. Test the switch by flipping it on and off several times.

If the light doesn’t turn on correctly, turn the power back off and recheck the connections.

Common Mistakes and How to Avoid Them

DIYers can make a few simple mistakes when they replace a light switch. Here’s what each one is and how not to fall for them.

• Misidentifying wires: An improperly identified wire leads to an improper connection, and an improper connection could be dangerous. Always label the wires when you disconnect them from the old switch, and double-check the labels before you hook wiring up to the new switch.
• Choosing the wrong type of switch: Three- and four-way switches allow you to control a single light from multiple different locations. While they look the same, they have different wiring requirements than the single-pole switches we teach you how to install in this guide. Carefully examine the wiring diagram included with the switch and ask an electrician if you need help knowing what components to buy.
• Forgetting to check for a ground connection: Omitting a ground connection is a potentially serious safety hazard. Even if the switch seems to work without it, be sure to attach the ground wire securely to the green terminal on the switch.
• Failing to connect the wires securely: Loose wire connections can lead to a malfunctioning switch in the best case and an electrical fire in the worst case. Tightly connect all wires around their respective terminals, and consider using wire nuts for added security.
